Few-shot Bioacoustic Event Detection

Task description


Ines Nolasco
Shubhr Singh
Vincent Lostanlen
Ariana Strandburg-Peshkin
Lisa Gill
Hanna Pamula
Ester Vidana Vila
Ester Vidana Vila

La Salle, Universitat Ramon Llull

Helen Whitehead
Helen Whitehead

University of Salford

Ivan Kiskin
Frants Jensen
Frants Jensen

Syracuse University

Joe Morford
Joe Morford

University of Oxford

Michael Emmerson
Michael Emmerson

Queen Mary University of London

Veronica Morfi
Dan Stowell
Dan Stowell

This task focuses on sound event detection in a few-shot learning setting for animal (mammal and bird) vocalisations. Participants will be expected to create a method that can extract information from five exemplar vocalisations (shots) of mammals or birds and detect and classify sounds in field recordings.

Challenge has ended. Full results for this task can be found in the Results page.

The development dataset has been changed. on 25th of April. Please download the new version from https://doi.org/10.5281/zenodo.6012309

If you are interested in the task, you can join us on dedicated slack : task-fewshot-bio-sed.


Few-shot learning is a highly promising paradigm for sound event detection. It is also an extremely good fit to the needs of users in bioacoustics, in which increasingly large acoustic datasets commonly need to be labelled for events of an identified category (e.g. species or call-type), even though this category might not be known in other datasets or have any yet-known label. While satisfying user needs, this will also benchmark few-shot learning for the wider domain of sound event detection (SED).

Few-shot learning describes tasks in which an algorithm must make predictions given only a few instances of each class, contrary to standard supervised learning paradigm. The main objective is to find reliable algorithms that are capable of dealing with data sparsity, class imbalance and noisy/busy environments. Few-shot learning is usually studied using N-way-K-shot classification, where N denotes the number of classes and K the number of examples for each class.

Some reasons why few-shot learning has been of increasing interest:

  • Scarcity of supervised data can lead to unreliable generalisations of machine learning models.
  • Explicitly labeling a huge dataset can be costly both in time and resources.
  • Fixed ontologies or class labels used in SED and other DCASE tasks are often a poor fit to a given user’s goal.

Development Set

The development set is pre-split into training and validation sets. The training set consists of five sub-folders deriving from a different source each. Along with the audio files multi-class annotations are provided for each. The validation set consists of two sub-folders deriving from a different source each, with a single-class (class of interest) annotation file provided for each audio file.

Training Set

The training set contains four different sub-folders (BV, HV, JD, MT,WMW). Statistics are given overall and specific for each sub-folder.


Statistics Values
Number of audio recordings 174
Total duration 21 hours
Total classes (excl. UNK) 47
Total events (excl. UNK) 14229


The BirdVox-DCASE-10h (BV for short) contains five audio files from four different autonomous recording units, each lasting two hours. These autonomous recording units are all located in Tompkins County, New York, United States. Furthermore, they follow the same hardware specification: the Recording and Observing Bird Identification Node (ROBIN) developed by the Cornell Lab of Ornithology. Andrew Farnsworth, an expert ornithologist, has annotated these recordings for the presence of flight calls from migratory passerines, namely: American sparrows, cardinals, thrushes, and warblers. In total, the annotator found 2,662 from 11 different species. We estimate these flight calls to have a duration of 150 milliseconds and a fundamental frequency between 2 kHz and 10 kHz.

Statistics Values
Number of audio recordings 5
Total duration 10 hours
Total classes (excl. UNK) 11
Total events (excl. UNK) 9026
Ratio event/duration 0.04
Sampling rate 24,000 Hz


Spotted hyenas are a highly social species that live in "fission-fusion" groups where group members range alone or in smaller subgroups that split and merge over time. Hyenas use a variety of types of vocalizations to coordinate with one another over both short and long distances. Spotted hyena vocalization data were recorded on custom-developed audio tags designed by Mark Johnson and integrated into combined GPS / acoustic collars (Followit Sweden AB) by Frants Jensen and Mark Johnson. Collars were deployed on female hyenas of the Talek West hyena clan at the MSU-Mara Hyena Project (directed by Kay Holekamp) in the Masai Mara, Kenya as part of a multi-species study on communication and collective behavior. Field work was carried out by Kay Holekamp, Andrew Gersick, Frants Jensen, Ariana Strandburg-Peshkin, and Benson Pion; labeling was done by Kenna Lehmann and colleagues.

Statistics Values
Number of audio recordings 5
Total duration 5 hours
Total classes (excl. UNK) 3
Total events (excl. UNK) 611
Ratio events/duration 0.05
Sampling rate 6000 Hz


Jackdaws are corvid songbirds which usually breed, forage and sleep in large groups, but form a pair bond with the same partner for life. They produce thousands of vocalisations per day, but many aspects of their vocal behaviour remained unexplored due to the difficulty in recording and assigning vocalisations to specific individuals, especially in natural settings. In a multi-year field study (Max-Planck-Institute for Ornithology, Seewiesen, Germany), wild jackdaws were equipped with small backpacks containing miniature voice recorders (Edic Mini Tiny A31, TS-Market Ltd., Russia) to investigate the vocal behaviour of individuals interacting normally with their group, and behaving freely in their natural environment. The jackdaw training dataset contains a 10-minute on-bird sound recording of one male jackdaw during the breeding season 2015. Field work was conducted by Lisa Gill, Magdalena Pelayo van Buuren and Magdalena Maier. Sound files were annotated by Lisa Gill, based on a previously established video-validation in a captive setting.

Statistics Values
Number of audio recordings 1
Total duration 10 minutes
Total classes (excl. UNK) 1
Total events (excl. UNK) 357
Ratio event/duration 0.06
Sampling rate 22,050 Hz


Meerkats are a highly social mongoose species that live in stable social groups and use a variety of distinct vocalizations to communicate and coordinate with one another. Meerkat vocalization data were recorded at the Kalahari Meerkat Project (Kuruman River Reserve, South Africa; directed by Marta Manser and Tim Clutton-Brock), as part of a multi-species study on communication and collective behavior. Data in the training set were recorded on small audio devices (TS Market, Edic Mini Tiny+ A77, 8 kHz) integrated into combined GPS/audio collars which were deployed on multiple members of meerkat groups to monitor their movements and vocalizations simultaneously. Recordings were carried out during daytime hours while meerkats were primarily foraging (digging in the ground for small prey items). Field work was carried out by Ariana Strandburg-Peshkin, Baptiste Averly, Vlad Demartsev, Gabriella Gall, Rebecca Schaefer and Marta Manser. Audio recordings were labeled by Baptiste Averly, Vlad Demartsev, Ariana Strandburg-Peshkin, and colleagues.

Statistics Values
Number of audio recordings 2
Total duration 1 hour and 10 mins
Total classes (excl. UNK) 4
Total events (excl. UNK) 1294
Ratio event/duration 0.04
Sampling rate 8,000 Hz


WMW consist on a selection of recordings from the Western Mediterranean Wetlands Bird dataset. The recordings are taken from the Xeno-Canto portal. The present selection consists in 161 audio recordings of different lengths that have at least 10 positive events. These have been annotated for 26 different classes of 20 species of birds.

Statistics Values
Number of audio recordings 161
Total duration 4 hour and 40 mins
Total classes (excl. UNK) 26
Total events (excl. UNK) 2941
Ratio event/duration 0.24
Sampling rate various

Training annotation format

Annotation files have the same name as their corresponding audiofiles with extension *.csv. For the training set multi-class annotations are provided, with positive (POS), negative (NEG) and unknown (UNK) values for each class. UNK indicates uncertainty about a class and participants can choose to ignore it. Example of an annotation file for audio.wav:


Validation Set

The validation set comprises of four sub-folders (HV, PB,ME,ML). Specific information about the source of the recordings are not provided for the participants for the duration of the challenge, as to make information available for the validation set as similar to the evaluation set (once that is also published). More information about both will be made available after the end of the challenge.

There is no overlap between the training set and validation set classes.


Statistics Values
Number of audio recordings 18
Total duration 5 hours and 57 minutes
Total classes (excl. UNK) 5
Total events (excl. UNK) 1077


Statistics Values
Number of audio recordings 10
Total duration 2 hours and 38 minutes
Total classes (excl. UNK) 1
Total events (excl. UNK) 712
Ratio event/duration 0.7
Sampling rate 44100 Hz


Statistics Values
Number of audio recordings 10
Total duration 3 hours
Total classes (excl. UNK) 2
Total events (excl. UNK) 292
Sampling rate 44,100 Hz


Statistics Values
Number of audio recordings 2
Total duration 20 minutes
Total classes (excl. UNK) 2
Total events (excl. UNK) 73
Ratio event/duration 0.01
Sampling rate 48000 Hz

Validation annotation format

Annotation files have the same name as their corresponding audiofiles with extension *.csv. For the validation set single-class (class of interest) annotations are provided, with positive (POS), unkwown (UNK) values. UNK indicates uncertainty about a class and participants can choose to ignore it. Each audio file should be treated separately of the rest, as there is possible overlap between the classes of the evaluation set across different audio files.

Participants must treat the task as a 5-shot setting and only use the first five POS annotations for the class of interest for each file, when trying to predict the rest.

Example of an annotation file for audio_val.wav:



Evaluation Set

The Evaluation set consists of 46 audio files acquired from different bioacoustic sources organized by 6 subsets (DC, CHE, MGE, MS, QU) At this time only the first 5 annotations are provided for each file, with events marked as positive (POS) for the class of interest. The annotation files follow the same format as for the validation set. This dataset is to be used for evaluation purposes during the task and the rest of the annotations will be released after the end of the DCASE 2022 challenge (July 1st) together with some extra information related to target classes.

Task setup

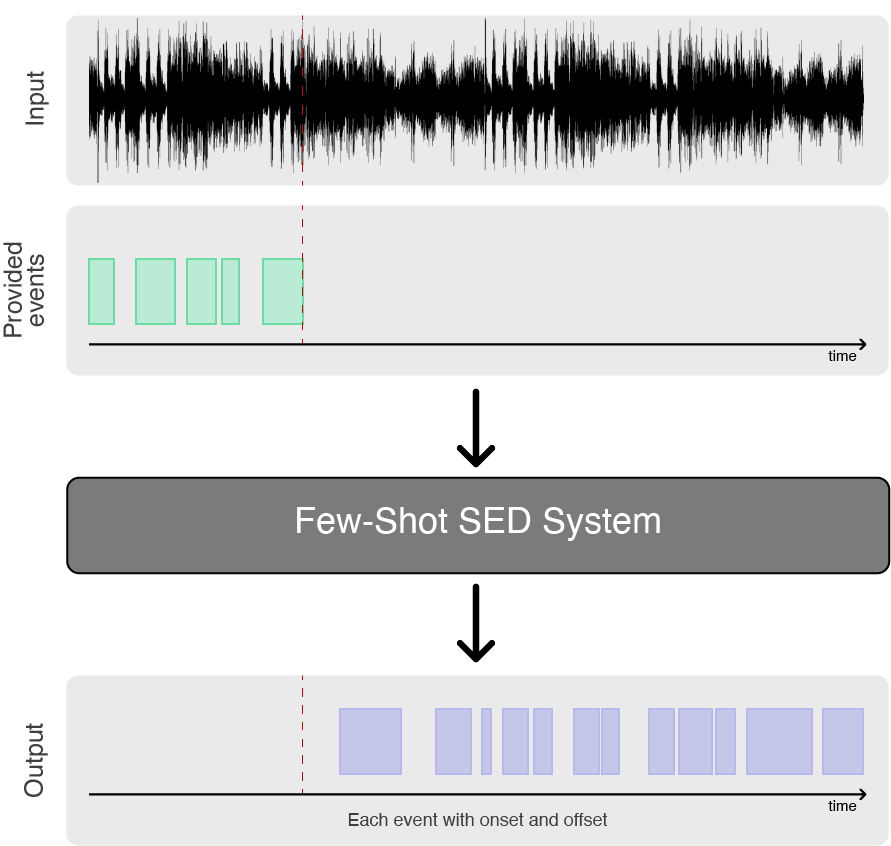

This few-shot task will run as a 5-shot task. Hence, five annotated calls from each recording in the evaluation set will be provided to the participants. Each recording of the evaluation set will have a single class of interest which the participants will then need to detect through the recording. Each recording can have multiple types of calls or species present in it, as well as background noise, however only the label of interest needs to be detected.

During the development period the participants are required to treat the validation set in the same way as the evaluation set by using the first five positive (POS) events for their models. Participants should keep in mind that our evaluation metric ignores anything before the end time of the fifth positive event, hence using randomly selected events from the validation set may lead to incorrect performance values.

Task rules

  • Use of external data (e.g. audio files, annotations) is allowed only after approval from the task coordinators (contact: i.dealmeidanolasco@qmul.ac.uk). Typically these external datasets should be public, open datasets.
  • Use of pre-trained models is allowed only after approval from the task coordinators (contact: i.dealmeidanolasco@qmul.ac.uk).
  • List of external datasets and models allowed:
Dataset name Type Added Link
AudioSet audio, video 14.05.2021 https://research.google.com/audioset/
OpenL3 model 14.05.2021 https://openl3.readthedocs.io/
ECAPA-TDNN model 14.05.2021 https://github.com/speechbrain/speechbrain
PANN model 14.05.2021 https://github.com/qiuqiangkong/audioset_tagging_cnn
BEATs model 14.05.2021 https://github.com/microsoft/unilm/tree/master/beats
ESC50 audio dataset 14.05.2021 http://www.cs.cmu.edu/~alnu/tlwled/esc50.htm
ImageNet image dataset 14.05.2021 http://www.image-net.org/
VoxCeleb audio,visual dataset 14.05.2021 https://www.robots.ox.ac.uk/~vgg/data/voxceleb/
TUT Acoustic scenes 2016 audio dataset 14.05.2021 https://zenodo.org/record/45739#.YJ76v5NKidY

  • The development dataset (i.e. training and validation) can be augmented without the use of external data.
  • Participants are not allowed to use VGG Sound dataset and DCASE2018 Bird Audio Detection task dataset.
  • Participants are not allowed to make subjective judgments of the evaluation data, nor to annotate it.
  • Participants are not allowed to use extra annotations for the provided data.
  • Participants are only allowed to use the first five positive (POS) annotations from each validation set annotation file and use the rest for evaluation of their method.
  • Participants must treat each file in the validation set independently of the others (e.g. for prototypical networks do not save prototypes between audio files). This is due to the fact that the classes of the validation set are hidden and there is possible overlap between them inside the validation set.

The following data resources and pre-trained models are :


Official challenge submission consists of:

  • System output file (*.csv)
  • Metadata file (*.yaml)
  • Technical report explaining in sufficient detail the method (*.pdf)

System output should be presented as a single text-file (in CSV format, with a header row as shown in the example output below).

For each system, meta information should be provided in a separate file, containing the task-specific information. This meta information enables fast processing of the submissions and analysis of submitted systems. Participants are advised to fill the meta information carefully while making sure all information is correctly provided.

We allow up to 4 system output submissions per participant/team. For each system, metadata should be provided in a separate file, containing the task specific information. All files should be packaged into a zip file for submission. Please make a clear connection between the system name in the submitted metadata (the *.yaml file), submitted system output (the *.csv file), and the technical report. The detailed information regarding the challenge information can be found in the Submission page. Finally, for supporting reproducible research, we kindly ask from each participant/team to consider making available the code of their method (e.g. in GitHub) and pre-trained models, after the challenge is over.

Please note: automated procedures will be used for the evaluation of the submitted results. Therefore, the column names should be exactly as indicated in the example output below. Events in each file should be in order of start time.

Example output:


Metadata file

Example meta information file for task 5 baseline system task5/Morfi_QMUL_task5_1/Morfi_QMUL_task5_1.meta.yaml:

# Submission information
  # Submission label
  # Label is used to index submissions, to avoid overlapping codes among submissions
  # use the following way to form your label:
  # [Last name of corresponding author]_[Abbreviation of institute of the corresponding author]_task[task number]_[index number of your submission (1-4)]
  label: Morfi_QMUL_task5_1

  # Submission name
  # This name will be used in the results tables when space permits
  name: Cross-correlation baseline

  # Submission name abbreviated
  # This abbreviated name will be used in the results table when space is tight, maximum 10 characters
  abbreviation: xcorr_base

  # Submission authors in order, mark one of the authors as corresponding author.
    # First author
    - lastname: Morfi
      firstname: Veronica
      email: g.v.morfi@qmul.ac.uk                     # Contact email address
      corresponding: true                             # Mark true for one of the authors

      # Affiliation information for the author
        abbreviation: QMUL
        institute: Queen Mary University of London
        department: Centre for Digital Music
        location: London, UK

    # Second author
    - lastname: Stowell
      firstname: Dan
      email: dan.stowell@qmul.ac.uk                  # Contact email address

      # Affiliation information for the author
        abbreviation: QMUL
        institute: Queen Mary University of London
        department: Centre for Digital Music
        location: London, UK


# System information
  # SED system description, meta data provided here will be used to do
  # meta analysis of the submitted system. Use general level tags, if possible use the tags provided in comments.
  # If information field is not applicable to the system, use "!!null".

    # Audio input
    input_sampling_rate: any               # In kHz

    # Acoustic representation
    acoustic_features: spectrogram   # e.g one or multiple [MFCC, log-mel energies, spectrogram, CQT, PCEN, ...]

    # Data augmentation methods
    data_augmentation: !!null             # [time stretching, block mixing, pitch shifting, ...]

    # Embeddings
    # e.g. VGGish, OpenL3, ...
    embeddings: !!null

    # Machine learning
    # In case using ensemble methods, please specify all methods used (comma separated list).
    machine_learning_method: template matching         # e.g one or multiple [GMM, HMM, SVM, kNN, MLP, CNN, RNN, CRNN, NMF, random forest, ensemble, transformer, ...]
    # the system adaptation for "few shot" scenario.
    # For example, if machine_learning_method is "CNN", the few_shot_method might use one of [fine tuning, prototypical, MAML] in addition to the standard CNN architecture.
    few_shot_method: template matching         # e.g [fine tuning, prototypical, MAML, nearest neighbours...]

    # External data usage method
    # e.g. directly, embeddings, pre-trained model, ...
    external_data_usage: !!null

    # Ensemble method subsystem count
    # In case ensemble method is not used, mark !!null.
    ensemble_method_subsystem_count: !!null # [2, 3, 4, 5, ... ]

    # Decision making methods (for ensemble)
    decision_making: !!null                 # [majority vote, ...]

    # Post-processing, followed by the time span (in ms) in case of smoothing
    post-processing: peak picking, threshold				# [median filtering, time aggregation...]

  # System complexity, meta data provided here will be used to evaluate
  # submitted systems from the computational load perspective.

    # Total amount of parameters used in the acoustic model. For neural networks, this
    # information is usually given before training process in the network summary.
    # For other than neural networks, if parameter count information is not directly available,
    # try estimating the count as accurately as possible.
    # In case of ensemble approaches, add up parameters for all subsystems.
    total_parameters: !!null    # note that for simple template matching, the "parameters"==the pixel count of the templates, plus 1 for each param such as thresholding.
    # Approximate training time followed by the hardware used
    trainining_time: !!null
    # Model size in MB
    model_size: !!null

  # URL to the source code of the system [optional, highly recommended]

  # List of external datasets used in the submission.
  # A previous DCASE development dataset is used here only as example! List only external datasets
    # Dataset name
    - name: !!null
      # Dataset access url
      url: !!null
      # Total audio length in minutes
      total_audio_length: !!null            # minutes

# System results
  # Full results are not mandatory, but for through analysis of the challenge submissions recommended.
  # If you cannot provide all result details, also incomplete results can be reported.
      F-score: 2.01 # percentile

    # Per-dataset
        F-score: 1.22 #percentile
        F-score: 5.84 #percentile

Evaluation Metric

We implemented an event-based F-measure, macro-averaged evaluation metric. We use IoU followed by bipartite graph matching. The evaluation metric ignores the part of the file that contains the first five positive (POS) events and measure are estimated after the end time of the fifth positive event for each file. Furthermore, real-world datasets contain a small number of ambiguous or unknown labels marked as UNK in the annotation files provided. This evaluation metrics treats these separately during evaluation, so as not to penalise algorithms that can perform better than a human annotator. Final ranking of methods will be based on the overall F-measure for the whole of the evaluation set.


Rank Submission Information
Code Author Affiliation Event-based
with 95% confidence interval
(Evaluation dataset)
Baseline_TempMatch_task5_1 Veronica Morfi Centre for Digital Music, EECS, Queen Mary University of London, UK 12.3 (11.5 - 12.8)
Baseline_PROTO_task5_1 Shubhr Singh Centre for Digital Music, EECS, Queen Mary University of London, UK 5.3 ( - )
Wu_SHNU_task5_1 Yanhua Long SHNU 40.9 (40.5 - 41.3)
Zhang_CQU_task5_1 Zhang Tianyang CQU 1.2 (0.9 - 1.3)
Zhang_CQU_task5_2 Zhang Tianyang CQU 0.9 (0.0 - 1.0)
Zhang_CQU_task5_3 Zhang Tianyang CQU 1.9 (1.0 - 2.0)
Zhang_CQU_task5_4 Zhang Tianyang CQU 4.3 (3.7 - 4.6)
Kang_ET_task5_1 Kang Taein ET_LAB 2.4 (2.4 - 2.4)
Kang_ET_task5_2 Kang Taein ET_LAB 2.8 (2.8 - 2.9)
Hertkorn_ZF_task5_1 Michael Hertkorn ZF 43.4 (42.9 - 43.8)
Hertkorn_ZF_task5_2 Michael Hertkorn ZF 44.4 (45.0 - 45.4)
Hertkorn_ZF_task5_3 Michael Hertkorn ZF 41.4 (41.9 - 42.3)
Hertkorn_ZF_task5_4 Michael Hertkorn ZF 33.8 (32.4 - 34.6)
Zou_PKU_task5_1 Dongchao Yang PKU 19.2 (18.9 - 19.5)
Zou_PKU_task5_2 Dongchao Yang PKU 18.7 (18.4 - 19.0)
Zou_PKU_task5_3 Dongchao Yang PKU 18.9 (18.6 - 19.2)
Zou_PKU_task5_4 Dongchao Yang PKU 15.8 (15.4 - 16.1)
Tan_WHU_task5_1 Yizhou Tan WHU 8.1 (7.3 - 8.5)
Tan_WHU_task5_2 Yizhou Tan WHU 16.9 (16.4 - 17.2)
Tan_WHU_task5_3 Yizhou Tan WHU 17.1 (16.7 - 17.4)
Tan_WHU_task5_4 Yizhou Tan WHU 17.2 (16.8 - 17.6)
Liu_BIT-SRCB_task5_1 Miao Liu BIT 44.1 (43.6 - 44.5)
Liu_BIT-SRCB_task5_2 Miao Liu BIT 41.9 (41.6 - 42.2)
Liu_BIT-SRCB_task5_3 Miao Liu BIT 36.8 (36.5 - 37.2)
Liu_BIT-SRCB_task5_4 Miao Liu BIT 44.3 (43.9 - 44.6)
Willbo_RISE_task5_1 Martin Willbo RISE 17.9 (17.6 - 18.2)
Willbo_RISE_task5_2 Martin Willbo RISE 20.4 (20.1 - 20.7)
Willbo_RISE_task5_3 Martin Willbo RISE 20.2 (19.9 - 20.5)
Willbo_RISE_task5_4 Martin Willbo RISE 21.7 (21.3 - 22.0)
ZGORZYNSKI_SRPOL_task5_1 Bartlomiej Zgorzynski SRPOL 28.1 (27.6 - 28.5)
ZGORZYNSKI_SRPOL_task5_2 Bartlomiej Zgorzynski SRPOL 16.3 (15.1 - 16.9)
ZGORZYNSKI_SRPOL_task5_3 Bartlomiej Zgorzynski SRPOL 29.9 (29.3 - 30.3)
ZGORZYNSKI_SRPOL_task5_4 Bartlomiej Zgorzynski SRPOL 33.2 (32.7 - 33.7)
Huang_SCUT_task5_1 Qisheng Huang SCUT 18.3 (18.0 - 18.6)
Martinsson_RISE_task5_1 John Martinsson RISE 48.0 (47.5 - 48.4)
Martinsson_RISE_task5_2 John Martinsson RISE 45.4 (44.9 - 45.9)
Martinsson_RISE_task5_3 John Martinsson RISE 19.4 (18.6 - 20.0)
Martinsson_RISE_task5_4 John Martinsson RISE 32.5 (31.7 - 33.1)
Liu_Surrey_task5_1 Liu Haohe Surrey 43.1 (42.7 - 43.4)
Liu_Surrey_task5_2 Liu Haohe Surrey 48.2 (48.5 - 48.9)
Liu_Surrey_task5_3 Liu Haohe Surrey 36.9 (36.5 - 37.2)
Liu_Surrey_task5_4 Liu Haohe Surrey 45.5 (45.8 - 46.2)
Li_QMUL_task5_1 Ren Li QMUL 15.5 (15.2 - 15.8)
Mariajohn_DSPC_task5_1 Aaquila Mariajohn DSPC 25.7 (25.4 - 25.9)
Du_NERCSLIP_task5_1 Jigang Tang iFLYTEK Research Institute 36.5 (35.6 - 37.0)
Du_NERCSLIP_task5_2 Jigang Tang iFLYTEK Research Institute 60.2 (59.7 - 61.7)
Du_NERCSLIP_task5_3 Jigang Tang iFLYTEK Research Institute 42.9 (42.4 - 43.4)
Du_NERCSLIP_task5_4 Jigang Tang iFLYTEK Research Institute 60.0 (58.5 - 61.5)

Complete results and technical reports can be found in the results page

Baseline system

Two baselines are provided:

  • Spectrogram correlation template matching (common in bioacoustics)
  • Deep learning prototypical network (a good modern approach)
  • The reported result for deep learning baseline is the best performance of the model.

Baseline Results

System F-measure Precision Recall
Template Matching 4.28% 2.42% 18.32%
Prototypical Network 29.59% 36.34% 24.96%

Sound event detection via few-shot learning is a novel and challenging task, as reflected in the performance of the baseline systems. There is thus lots of scope for improving on these scores, and making a significant contribution to animal monitoring.


Participants can contact the task organisers via email (i.dealmeidanolasco@qmul.ac.uk) or in the Slack channel: task-fewshot-bio-sed
